Aura Bioclimatic System and Nova Rolling Roof System

Aura Bioclimatic System and Nova Rolling Roof System

Home Products
Aura Bioclimatic System and Nova Rolling Roof System
Rotating and optionally retractable aluminum panel roof systems

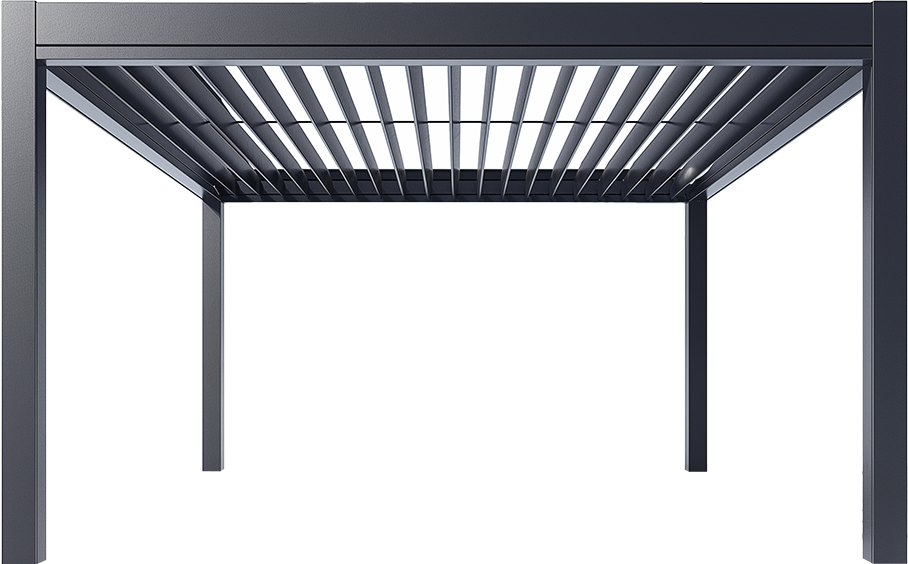

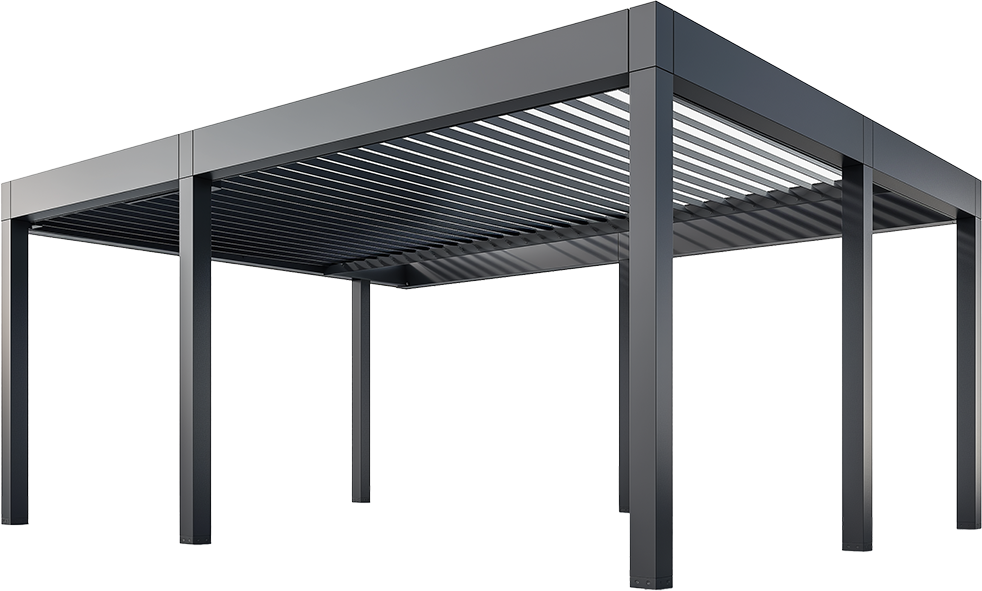

Aura Bioclimatic System and Nova Rolling Roof System

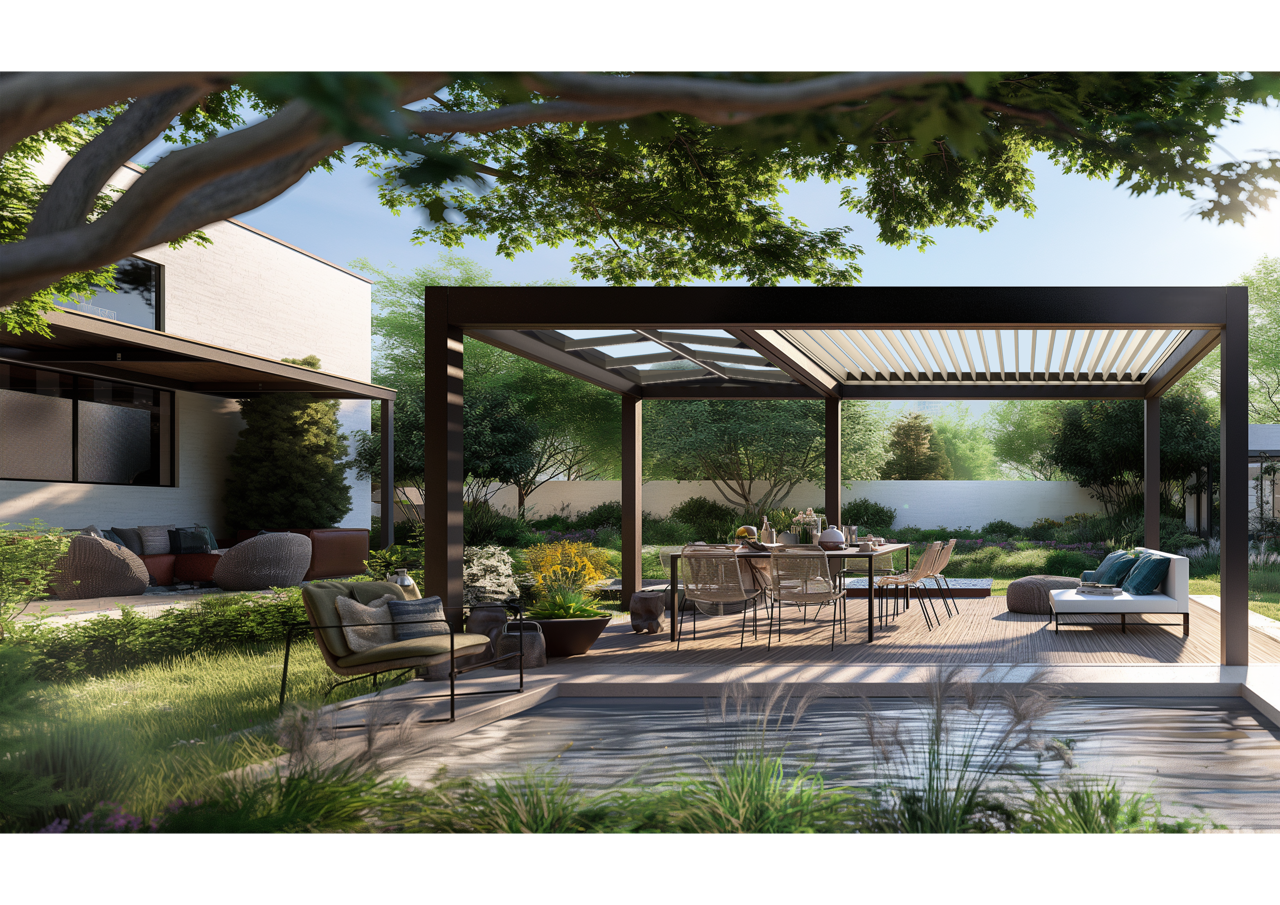

A bioclimatic pergola is a modern shading and climate control system that makes outdoor living spaces more comfortable and functional. Its aluminum adjustable panels on the top can open and close to provide protection against sunlight, wind, and rain. When adjusted to the desired angle, the panels allow natural light and airflow inside, and when fully closed, they offer complete protection from rain and sun.

  • 425 kg/m² snow load capacity
  • 144 km/h wind resistance
  • Water drainage with 25% panel slope
  • Approx. 70% open roof area in the Nova Rolling Roof variant
Aura Bioclimatic System and Nova Rolling Roof System

Product Images

Product Features

Dual-Channel LED Lighting

Allows the use of different LED colors on demand, creating a stylish atmosphere.

Full Protection & Waterproof Guarantee

Provides maximum resistance against rain, wind, and other external factors.

Easy Installation

Designed for quick assembly; no self-drilling screws are used, ensuring both aesthetics and safety.

Durable Aluminum Posts

Built with 180x180 mm aluminum columns, offering strength and long-lasting performance.

Catalog Details

Structural Durability and Snow Load Capacity

Thanks to their durable body structure, optimized profile dimensions, and special panel design, Aura Bioclimatic and Nova Rolling Roof can carry up to 425 kg/m² snow load and can be used safely even against winds of 144 km/h.

Structural Durability and Snow Load Capacity Structural Durability and Snow Load Capacity

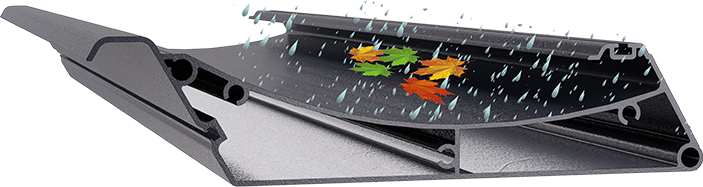

Optimized Panel Angle

The intelligently designed panels completely prevent water accumulation with a 25% slope and provide superior drainage. This feature increases system durability while offering users a comfortable and trouble-free experience.

Optimized Panel Angle

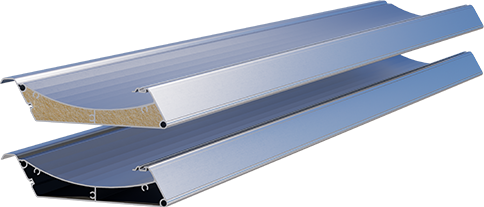

Climate Control Technology

Dense polyurethane foam used inside the panels strengthens heat and sound insulation. It provides a balanced atmosphere even during seasonal transitions.

Climate Control Technology Climate Control Technology

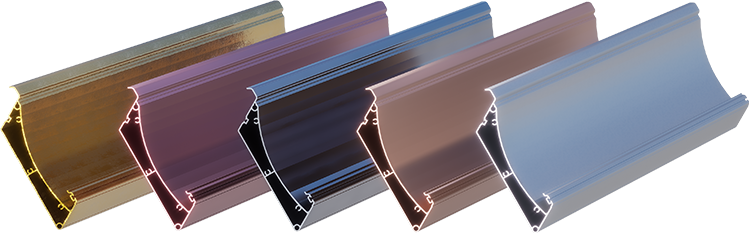

Color Options

Multiple color options are available for all structural parts. Advanced electrostatic powder coating and nanotechnology provide long-lasting and aesthetic finishes.

Color Options

Dual-Directional Lighting Options

The special LED profile used in the system allows lighting integration on both the upper and lower sections. Different color combinations or RGB options can create the desired atmosphere in the space. Thanks to its independent structure, the lighting module offers high resistance to water and external factors, providing long-lasting and reliable use.

Dual-Directional Lighting Options Dual-Directional Lighting Options Dual-Directional Lighting Options

Smart Control and Automation

Our products work in full harmony with iOS and Android compatible smart devices and can be managed easily through a user-friendly interface. Integrated voice command support plus sun, rain, and wind sensors allow the system to adapt automatically to weather conditions. These smart automation features increase comfort and help the system operate smoothly in all weather conditions.

Smart Control and Automation Smart Control and Automation Smart Control and Automation

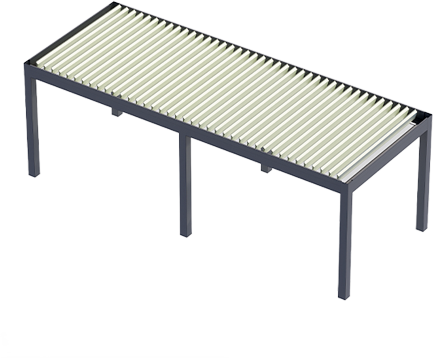

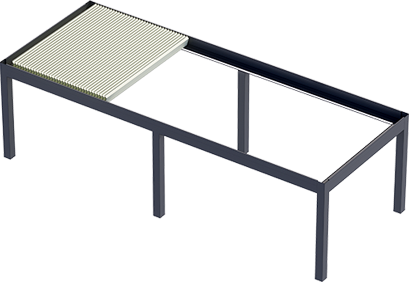

Flexible and Comprehensive Bioclimatic Solutions

Our systems offer facade spans up to 500 cm without using a middle carrier profile. When a middle support is added, this span can be increased up to 730 cm. With a projection distance of up to 900 cm, the system can be customized to fully adapt to any desired size.

Flexible and Comprehensive Bioclimatic Solutions Flexible and Comprehensive Bioclimatic Solutions

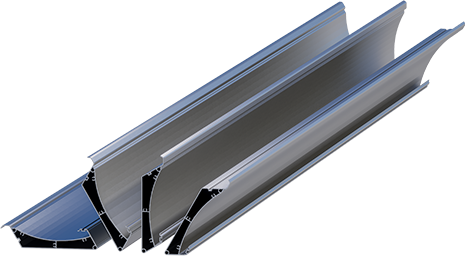

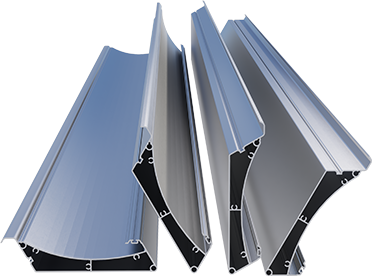

Maximum Comfort and Design Freedom

The system provides structural flexibility and design freedom with post spacing up to 570 cm. When the panels are retracted, approximately 70% of the roof opening remains open, creating a wide, airy, and comfortable living area for the user.

Maximum Comfort and Design Freedom Maximum Comfort and Design Freedom

Connection and Installation Details

System Drainage Connections

The special drainage system integrated into the aluminum post profiles solves water evacuation elegantly and invisibly. A rosette-like cover positioned at the front hides the pipe outlet aesthetically while preserving the exterior appearance of the system.

System Drainage Connections System Drainage Connections System Drainage Connections System Drainage Connections System Drainage Connections System Drainage Connections System Drainage Connections

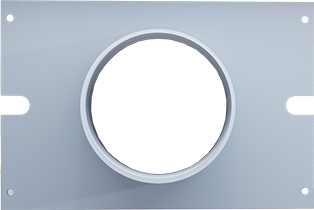

Superior Flexibility with Integrated Drainage

The reducer used in the system works integrated with PVC pipes to discharge water and provides full flexibility during installation. The drainage outlet can be directed from any of the four sides of the post, right, left, front, or rear, delivering maximum installation compatibility and ease.

Superior Flexibility with Integrated Drainage Superior Flexibility with Integrated Drainage Superior Flexibility with Integrated Drainage

Single System Module

The special corner connection part used in the systems removes the need for angled profile cutting and provides a clean right-angle joint. The integrated EPDM gasket maximizes water tightness and supports long-lasting system performance.

Single System Module

Double System Module

The special corner connection part used in the double system module creates a precise two-way connection. Profiles join at right angles without angled cutting, while the EPDM gasket provides maximum water tightness. The special drainage joint routes rainwater from two systems to a single carrier post without needing an additional post. The gutter and corner parts are reinforced with stainless set screws and nuts for high durability and long life.

Double System Module

Four-Way System Module

The four-way system module is used in applications requiring connection in four directions. Thanks to the specially designed corner part, all profiles are joined precisely at right angles. The EPDM-supported structure brings water tightness to the highest level. The special drainage joint transfers rainwater from four-way systems to a single carrier post without an additional post, while stainless set screws and nuts secure the connection points for a strong, aesthetic, and long-lasting solution.

Four-Way System Module

Modular System Variations

Modular system variations support different installation scenarios such as free-standing systems, side-by-side free-standing systems, multi-unit systems with corner connection elements, rear-wall mounted systems, side-by-side rear-wall mounted systems, and double-wall mounted systems. Bioclimatic, fabric pergola, and glass roof systems can be adapted to these variations, offering flexible layouts for single or multi-unit projects.

Modular System Variations Modular System Variations Modular System Variations Modular System Variations Modular System Variations Modular System Variations Modular System Variations Modular System Variations

Profile List

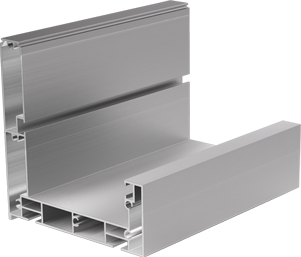

Oluk Profili
SG-1011

Oluk Profili

6,36 KG / 185 x 180 x 2,2 mm

View details
Oluk Takviye Profili
SG-1012

Oluk Takviye Profili

1,82 KG / 120 x 30 x 2 mm

View details

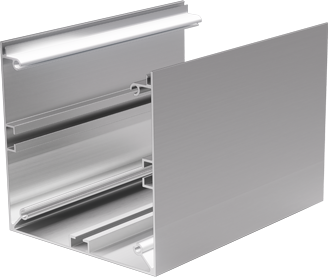

Direk Profili
SG-1013

Direk Profili

5,00 KG / 178 x 180 x 2,3 mm

View details

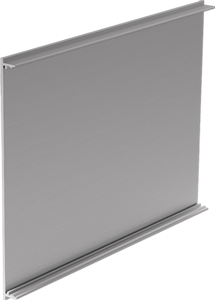

Direk Kapak Profili
SG-1014

Direk Kapak Profili

1,11 KG / 180 x 12,8 x 2 mm

View details

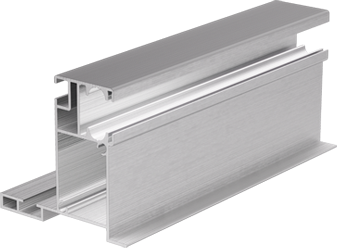

Sabit Ray Profili
SG-1015

Sabit Ray Profili

3,02 KG / 106,1 x 112,7 x 2,2 mm

View details

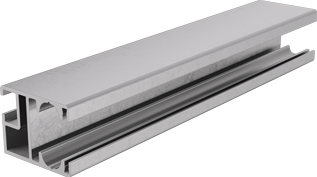

Hareketli Ray Profili
SG-1016

Hareketli Ray Profili

1,28 KG / 39 x 50,5 x 2,2 mm

View details

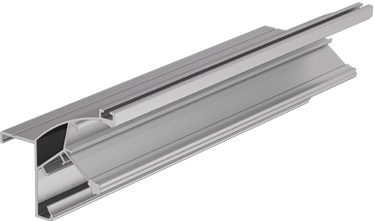

LED Profili
SG-1017

LED Profili

1,21 KG / 73 x 80,8 x 1,8 mm

View details

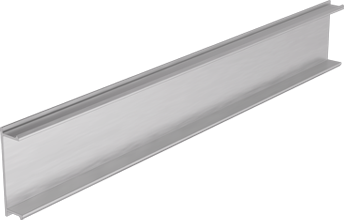

LED Kapağı Profili
SG-1018

LED Kapağı Profili

0,16 KG / 10,1 x 38,5 x 1 mm

View details

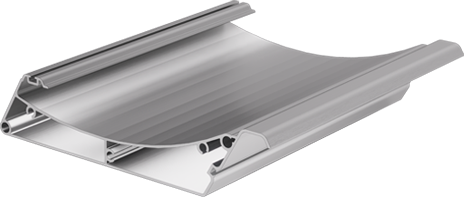

Panel Profili
SG-1019

Panel Profili

3,28 KG / 57,32 x 250,21 x 2 mm

View details

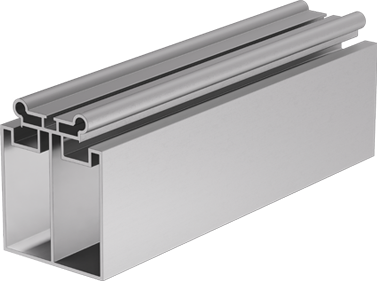

Orta Taşıyıcı Profili
SG-1020

Orta Taşıyıcı Profili

2,60 KG / 86,73 x 69,8 x 2 mm

View details

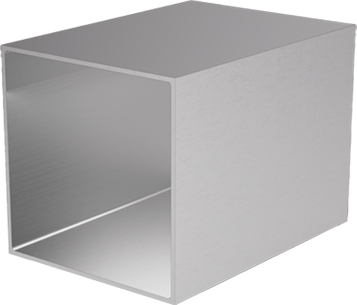

Dikme Kutu Profili
SG-1021

Dikme Kutu Profili

7,65 KG / 180 x 180 x 4 mm

View details

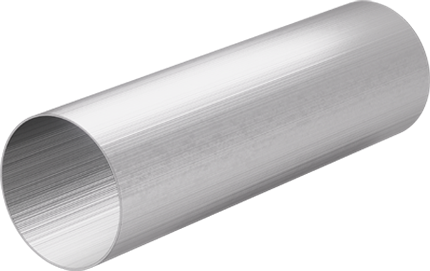

Su Tahliye Profili
SG-1022

Su Tahliye Profili

1,24 KG / 75 x 75 x 2 mm

View details

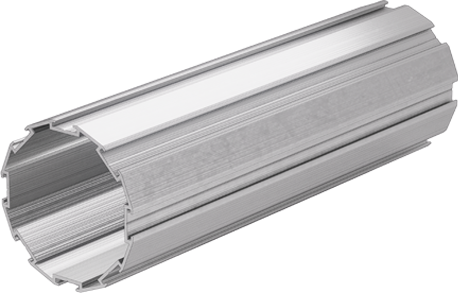

Tambur Boru Profili
SG-1023

Tambur Boru Profili

1,33 KG / 76,5 x 76,5 x 1,6 mm

View details

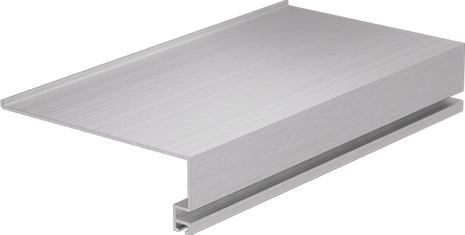

Takviye Kapama Profili
SG-1024

Takviye Kapama Profili

0,93 KG / 44,05 x 129 x 1,6 mm

View details

Accessories and Seals

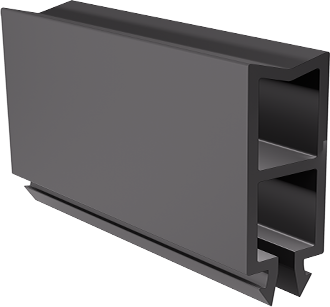

Orta Taşıyıcı Termoplastik Fitili
SG-F1093

Orta Taşıyıcı Termoplastik Fitili

View details
