Structural Durability and Snow Load Capacity
Built with durable aluminum carrier profiles and tempered glass, this system meets high safety standards with 100-230 kg/m² snow load capacity and 117-127 km/h wind resistance.
Fixed or movable glass roof solution

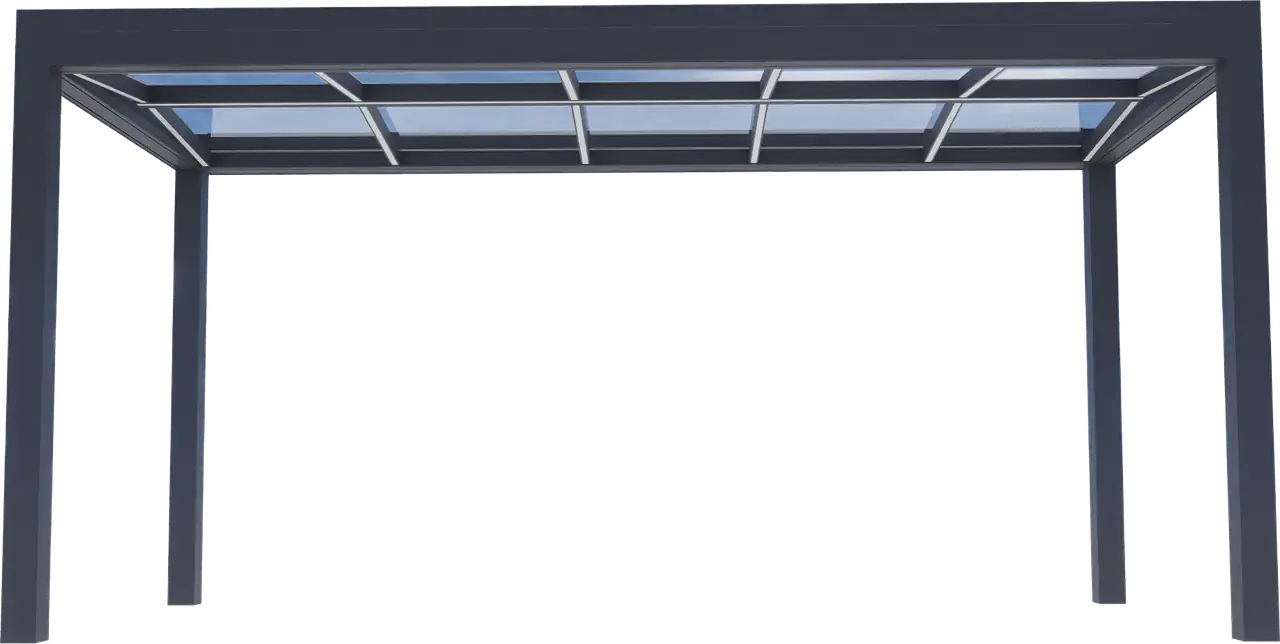

Vetra Glass Roof System
A glass roof system is a modern architectural solution that enhances outdoor living areas with maximum natural light, elegance, and comfort. Built with strong aluminum support profiles and high-durability glass panels, it provides safety and resistance against rain, wind, and snow loads while maintaining a bright and spacious atmosphere. The transparent structure creates a seamless connection between indoors and outdoors.
- 100-230 kg/m² snow load capacity
- 117-127 km/h wind resistance
- Glass slope up to 9 degrees
- 10/12 mm tempered or 5+5 / 6+6 laminated glass
Product Images
Product Features
High-Durability Glass Panels
Available in tempered and laminated options, ensuring safety and long-lasting use.
Full Protection
Provides superior resistance against rain, wind, and heavy snow loads.
Easy Installation
Designed for quick assembly; no self-drilling screws are used, ensuring both aesthetics and safety.
Durable Aluminum Profiles
Built with 180x180 mm support columns and specially engineered profiles for a strong foundation.
Catalog Details

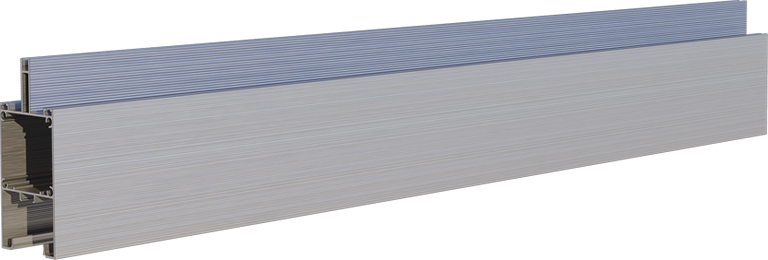

Optimized Glass Slope
Glass panels are designed with a special angle to ensure fast water drainage. This provides safe and comfortable use even in rainy weather. Depending on project requirements, the system design allows slopes up to 9 degrees.

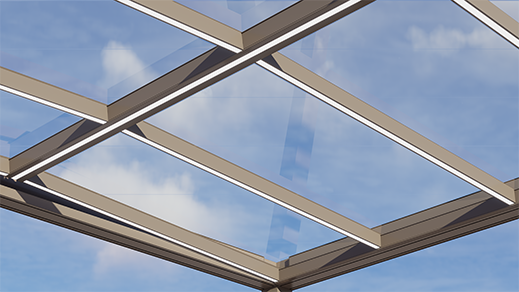

Heat and Light Control Technology
Special coated glass options balance sunlight and provide optimum heat and light control indoors. They help create a cooler use area in summer and a warmer one in winter.

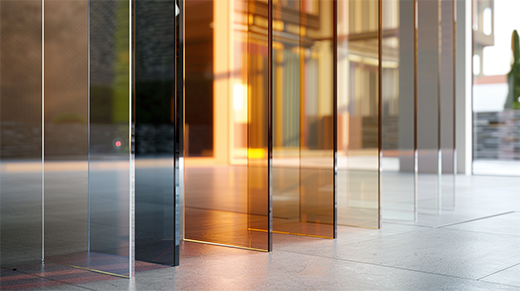

Color and Glass Options
Different profile color alternatives and glass types such as clear, smoked, and bronze provide aesthetic harmony with the space. The system can be produced with 10 mm or 12 mm tempered glass, as well as 5+5 mm or 6+6 mm laminated glass options.
Integrated Lighting Options
LED lighting solutions create a modern atmosphere for night use.

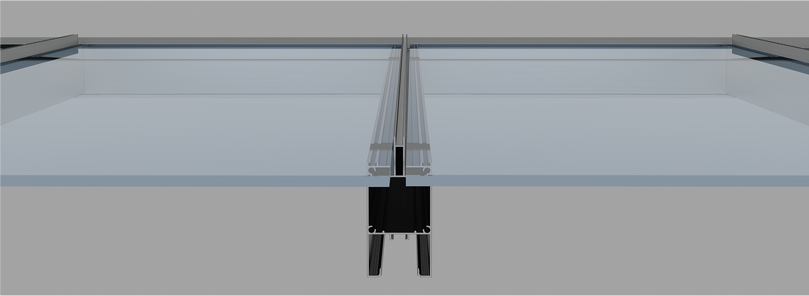

Multi-Layer Insulation System
Designed with high-quality gaskets and double-pressure EPDM seals, the system provides maximum insulation in all weather conditions. It creates a fully sealed, safe, and comfortable environment in use areas.

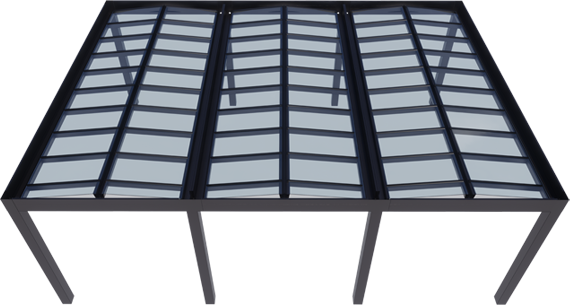

Flexible and Modular System Solutions
With fixed glass roof options, the system adapts to different architectural projects. Its modular structure offers flexible solutions for single, multiple, or large-area applications.

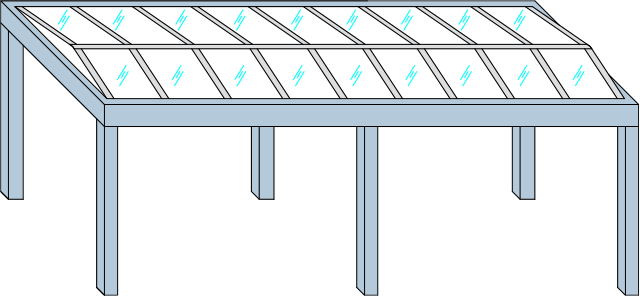

Maximum Comfort and Transparent Design
The glass roof system creates spacious, bright, and comfortable living areas with an open sky view. It provides a transparent architectural experience integrated with nature. The system design also offers up to 5 m facade span and up to 9 m projection.
Connection and Installation Details

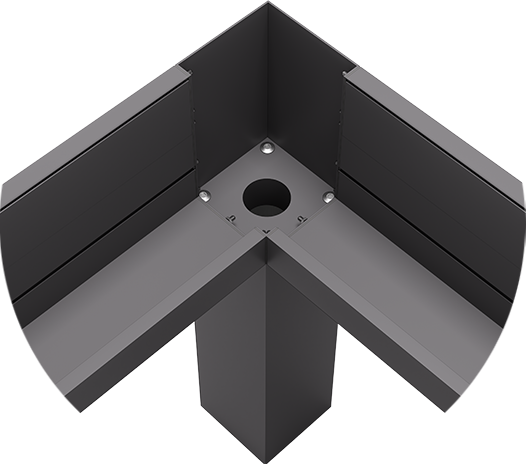

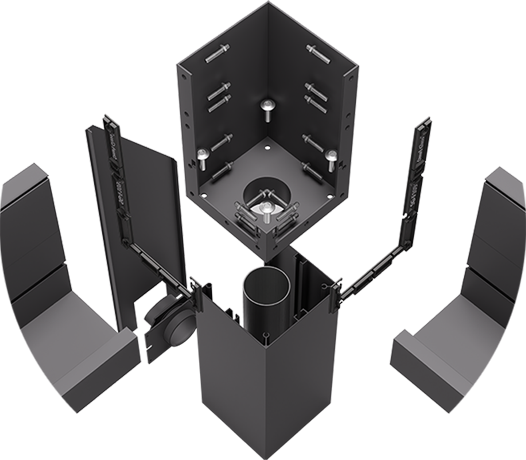

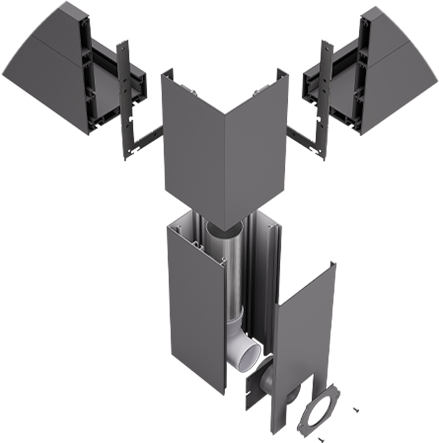

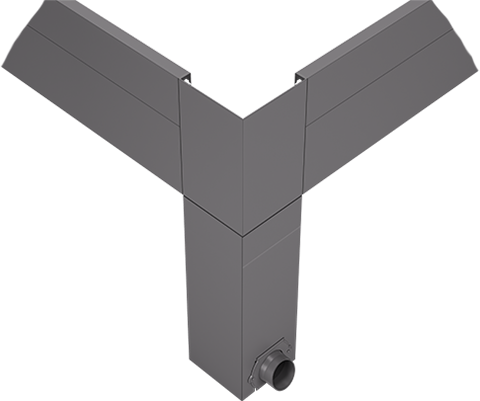

System Drainage Connections
The special drainage system integrated into the aluminum post profiles solves water evacuation elegantly and invisibly. A rosette-like cover positioned at the front hides the pipe outlet aesthetically while preserving the exterior appearance of the system.

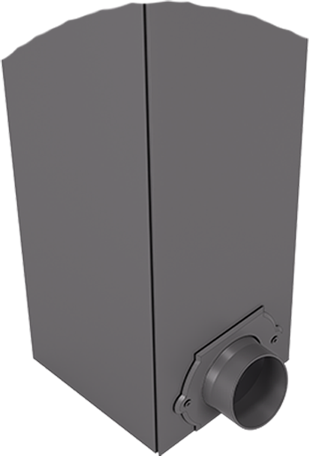

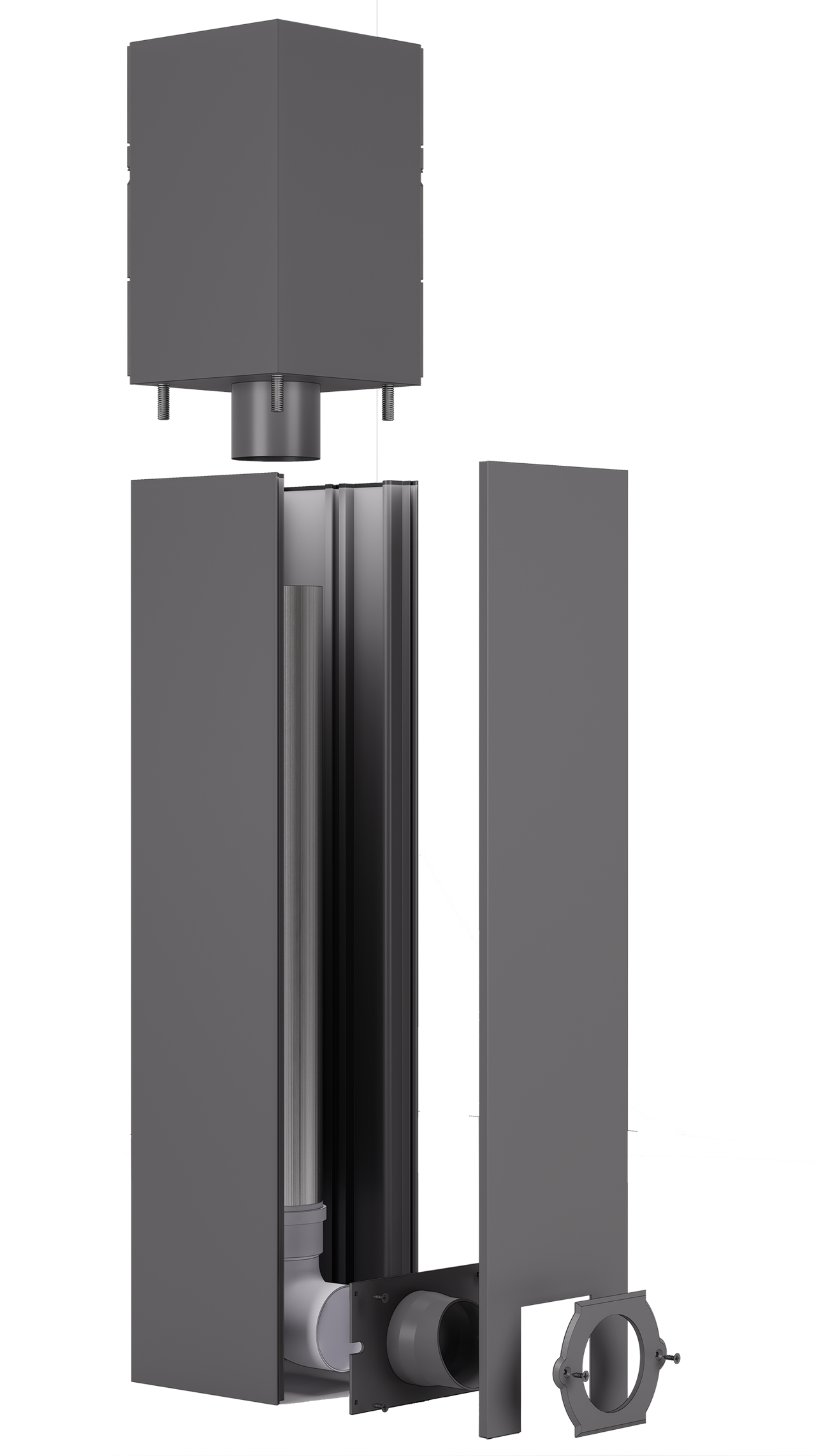

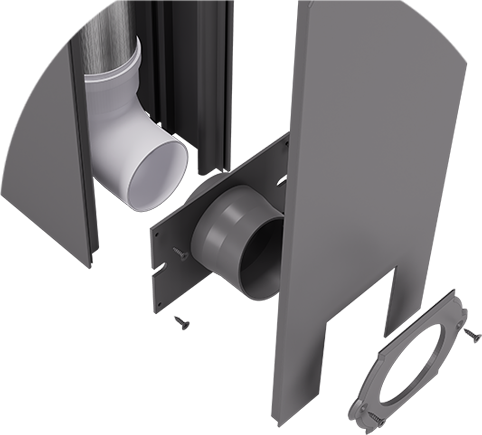

Superior Flexibility with Integrated Drainage

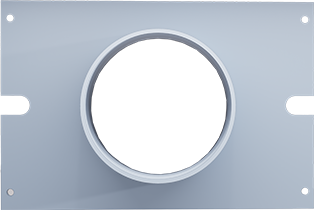

The reducer used in the system works integrated with PVC pipes to discharge water and provides full flexibility during installation. The drainage outlet can be directed from any of the four sides of the post, right, left, front, or rear, delivering maximum installation compatibility and ease.

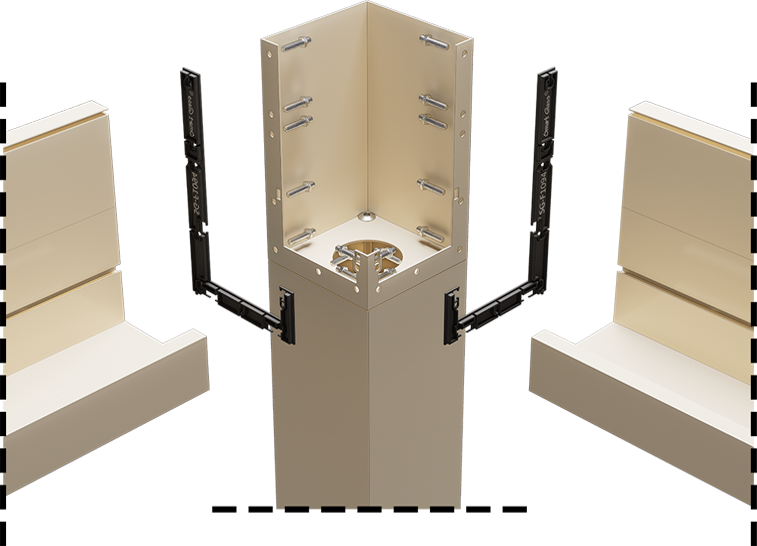

Single System Module
The special corner connection part used in the systems removes the need for angled profile cutting and provides a clean right-angle joint. The integrated EPDM gasket maximizes water tightness and supports long-lasting system performance.

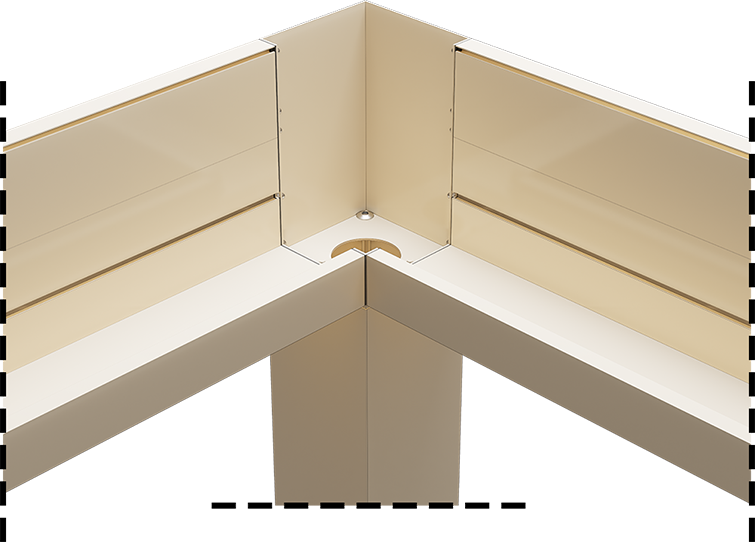

Double System Module
The special corner connection part used in the double system module creates a precise two-way connection. Profiles join at right angles without angled cutting, while the EPDM gasket provides maximum water tightness. The special drainage joint routes rainwater from two systems to a single carrier post without needing an additional post. The gutter and corner parts are reinforced with stainless set screws and nuts for high durability and long life.

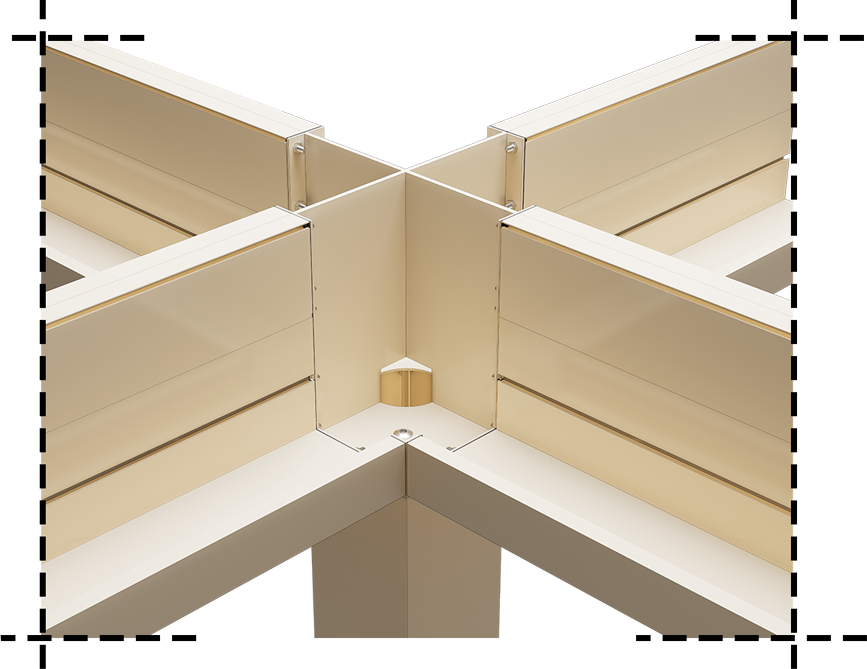

Four-Way System Module
The four-way system module is used in applications requiring connection in four directions. Thanks to the specially designed corner part, all profiles are joined precisely at right angles. The EPDM-supported structure brings water tightness to the highest level. The special drainage joint transfers rainwater from four-way systems to a single carrier post without an additional post, while stainless set screws and nuts secure the connection points for a strong, aesthetic, and long-lasting solution.

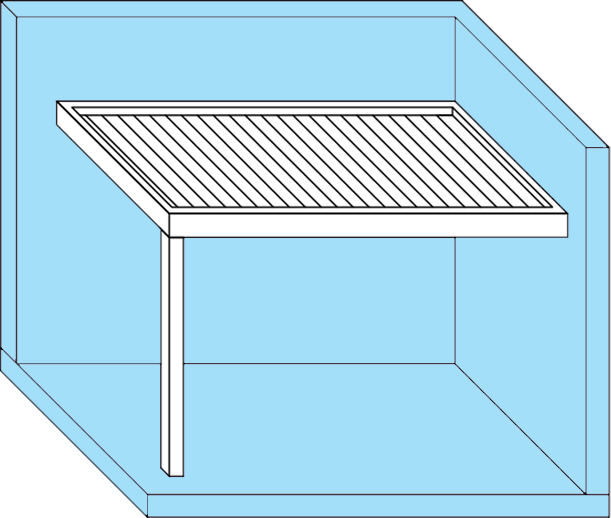

Modular System Variations
Modular system variations support different installation scenarios such as free-standing systems, side-by-side free-standing systems, multi-unit systems with corner connection elements, rear-wall mounted systems, side-by-side rear-wall mounted systems, and double-wall mounted systems. Bioclimatic, fabric pergola, and glass roof systems can be adapted to these variations, offering flexible layouts for single or multi-unit projects.

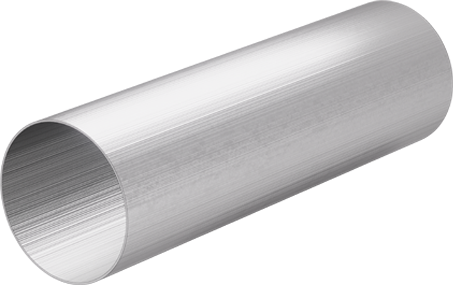

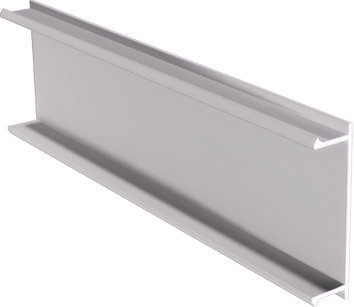

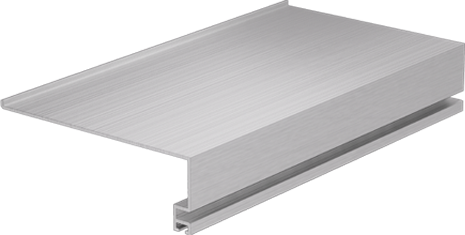

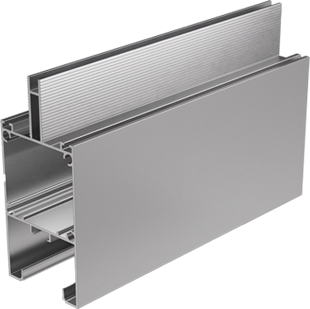

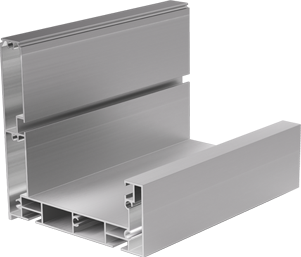

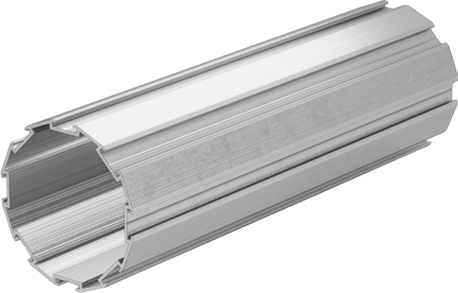

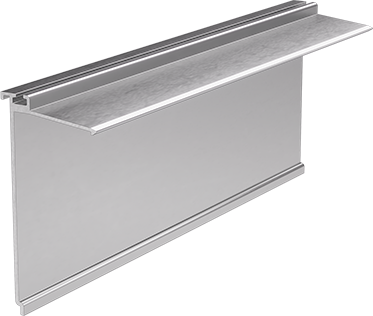

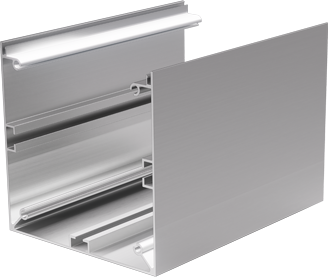

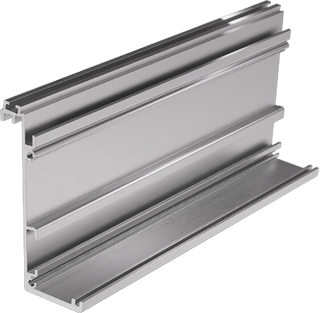

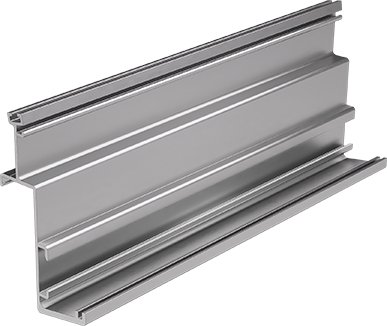

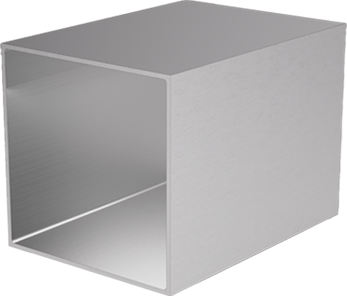

Profile List

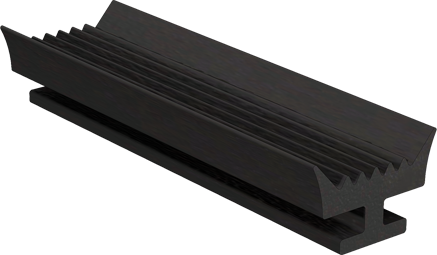

Accessories and Seals
